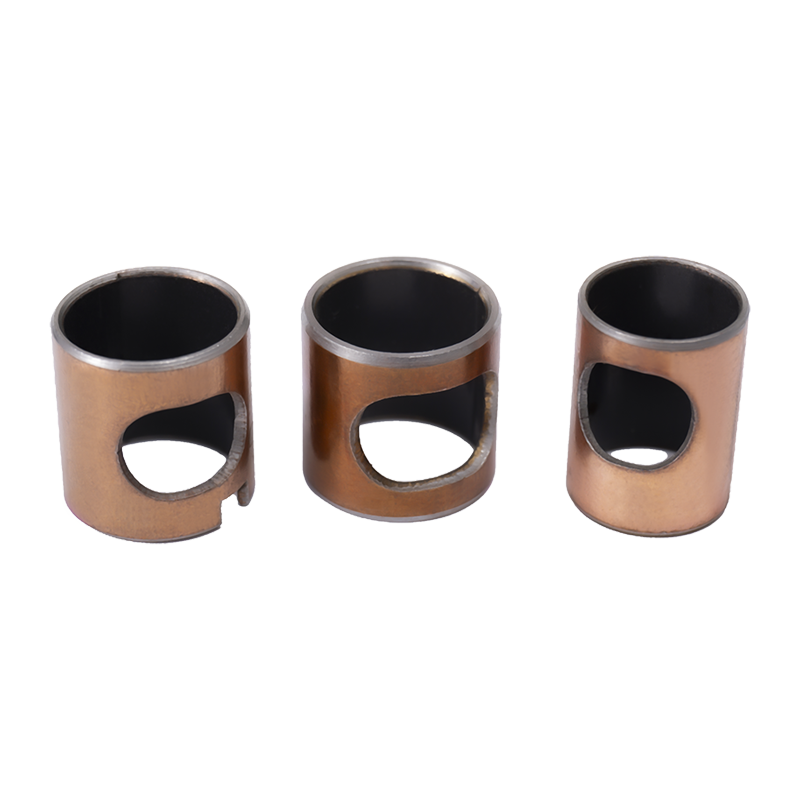

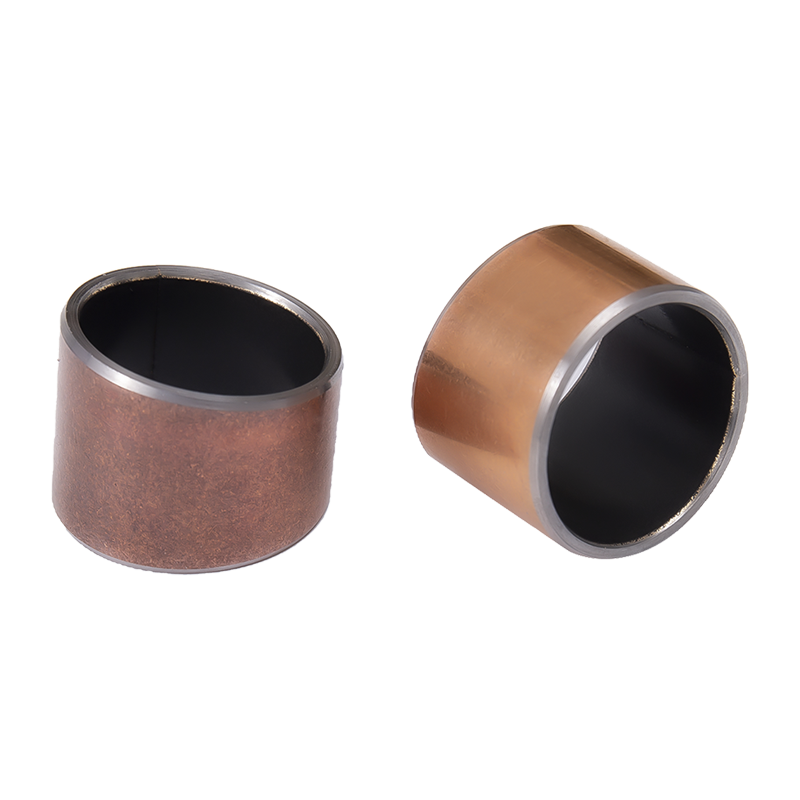

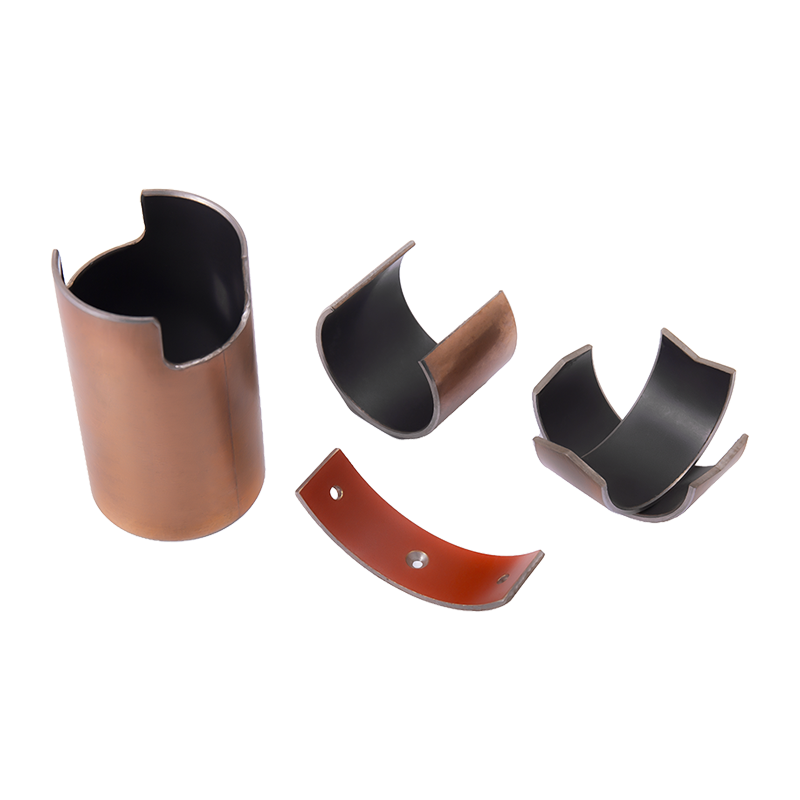

HZ10 Type I ferro-fundatur auto-luctantem afferentem Provisores, Societas

Applicationem Characteres

Frictio coefficiens et bona frictio arid**a effectus

Auto-lubricating et sustentationem-liberum

Apta linearibus, recursibus, et motibus gyratoriis

Non lapsus vel reptans per operationem

Ad machinis excudendis applicata, machinis textilibus, instrumento congruo, etc

Humilis chalybeum rarium aeris sintered PTFE/conventional filler (nigrum)

Technical Parameter

Indicatores propria	Unitas	Arida friction	Terminus lubricationis friction	Oleum cinematographicum lubricationis
Maxime dynamic onus	Mpa	140	140	140
Maximum stabilis onus	Mpa	250	250	250
Operatio temperatus	℃	-200~ 280	-200~ 280	-200~ 280
Maxime linearibus celeritas	m/s*	2.5	5.0	5.0
Maximum PV valorem	m/s*·Mpa	Continua operatio 1.8 Intermittendi operatio 3.6	5.0	60.0
Frictio coefficientis		0.08~0.20	0.04~0.12	0.02~0.08

Applicationem Feature

1. Operationis oleum vel minimum oleum statum. sustentationem liberam vel justam paulo sustentationem egent.
2. Abrasioni resist, humilis attritionis coefficiens vita longa operans.
3.Operating in-195℃~ 280C
4. Bonorum reparatio. ignobilem sonitum. non-pollutus.
5. Thinwall. lucem, quae machinam in parvam reducere possit.
6. Translatum cinematographicum formans in operatione ad tuendum stipite.
7. Minimum postulant scapi nullam duritiem superficiei tractandi. quae demittere sumptus admittit.
8. Nullus effusio aquatici/olei. parva coefficiens motus Thermal. bonum scelerisque conductivity et magnitudine stabilitatem.
9. Tergum ex chalybe habena variis metallis patella potest. anticorrosion. Producta nunc in diversis machinarum partibus labens adhibentur. ut auto- machinis piston sentinam. calces sentinae. machinis textilis. auto- sides machine.injection Machine. ludis, Apparatus officio, apparatu etc.

Material Structure

1. PTEE cum plumbo 0.01~ 0.03mm
2. Aes rarius 0.2~0.3mm
3. Ferro tergum 0.7~2.3
4. stannum-platmentum 0.005mm vel lamina aeris 0.008mm

Praeter haec, HZ etiam HZ-1T evolvit, quod in sentinam calces et anconam sub magna celeritate applicari potest, alta pressio et liquida lubricatio, et velocitas linearis 1Om/s PV pervenire potest quae usque ad 60N/mm²*m/s.

Technical Date

Euismod index	Data
P. Maximilianus. Capacitas onus P	140N/mm²
Frictio Coef μ	0.04～0.20
Operatio Temperature	-190℃~ 280℃
Maximum PV Value	clipe3.6N/mm²·m/s
Maximum PV Value	oil）3.6N/mm²·m/s

ZH10 Self-Lubricating Bearings Standard Metric Size (Secundum DIN1494)

d	D	Telum Dia f7	habitationem H7	Murus Crassitudo		f1	f2	0 L-0.040
d	D	Telum Dia f7	habitationem H7	Min.	Maximilianus.	f1	f2	6	8	10	12	15	20	25	30	40	50
6	8	-0.013 6-0.028	8 0.015	0.980	1.005	0.6	0.3	0606	0608	0610
8	10	-0.013 8 -0.028	10 0.015					0806	0808	0810	0812	0815
10	12	-0.016 10-0.034	12 0.018					1006	1008	1010	1012	1015	1020
12	14	-0.016 12-0.034	14 0.018					1206	1208	1210	1212	1215	1220	1225
13	15	-0.016 13-0.034	15 0.018							1310			1320
14	16	-0.016 14-0.034	16 0.018							1410	1412	1415	1420	1425
15	17	-0.016 15-0.034	17 0.018							1510	1512	1515	1520	1525
16	18	-0.016 16-0.034	18 0.018							1610	1612	1615	1620	1625
17	19	-0.016 17-0.034	19 0.021							1710	1712		1720
18	20	-0.016 18-0.034	20 0.021							1810	1812	1815	1820	1825
20	23	-0.020 20-0.041	23 0.021	1.475	1.505	0.6	0.4			2010	2012	2015	2020	2025	2030
22	25	-0.020 22-0.041	25 0.021							2210	2212	2215	2220	2225	2230
24	27	-0.020 24-0.041	27 0.021									2415	2420	2425	2430
25	28	-0.020 25-0.041	28 0.021							2510	2512	2515	2520	2525	2530	2540	2550
28	32	-0.020 28-0.041	32 0.025	1.970	2.005	1.2	0.4					2815	2820	2825	2830	2840
30	34	-0.020 30-0.041	34 0.025								3012	3015	3020	3025	3030	3040
32	36	-0.025 32-0.050	36 0.025										3220		3230	3240
35	39	-0.025 35-0.050	39 0.025								3512	3515	3520	3525	3530	3540	3550
38	42	-0.025 38-0.050	42 0.025									3815			3830	3840
40	44	-0.025 40-0.050	44 0.025								4012		4020	4025	4030	4040	4050

Nota: ferens magnitudinem praeter magnitudines supra dictas, nativus et produci potest. Lorem commodo nobis ipsam.

ZH10 Self-Lubricating Bearings Standard Metric Size (Secundum DIN1494)

d	D	Telum Dia f7	habitationem H7	Murus Crassitudo		f1	f2	0 L-0.040
d	D	Telum Dia f7	habitationem H7	Min.	Maximilianus.	f1	f2	20	25	30	40	50	60	70	80	100	115
45	50	_-0.025 45 _-0.050	50 ^0.025	2.46	2.505	1.8	0.6	4520	4525	4530	4540	4550
50	55	_-0.025 50 _-0.050	55 ^0.030					5020		5030	5040	50505060
55	60	_-0.030 55 _-0.060	60 ^0.030							5530	5540	5550	5560
60	65	_-0.030 60 _-0.060	65 ^0.030							6030	6040	6050	6060	6070
65	70	_-0.030 60- _0.060	70 ^0.030							6530	6540	6550	6560	6570
70	75	_-0.030 70- _0.060	75 ^0.030								7040	7050	7060	7070	7080
75	80	75 _-0.030	80 ^0.035							7530	7540	7550	7560	7570	7580
80	85	80 _-0.035	85 ^0.035	2.44	2.49	1.8	0.6				8040	8050	8060	8070	8080	80100
85	90	85 _-0.035	90 ^0.035								8540		8560		8580	85100
90	95	90 _-0.035	95 ^0.035								9040	90509060			9080	90100
95	100	95 _-0.035	100 ^0.035									9550	9560		9580	95100
100	105	100 _-0.035	105 ^0.035									10050	10060		10080		100115
105	110	105 _-0.035	110 ^0.035										10560		10580		105115
110	115	110 _-0.035	115 ^0.035										11060		11080		110115
120	125	120 _-0.040	125 ^0.040	2.415	2.465	1.8	0.6						12060		12080	120100
125	130	125 _-0.040	130 ^0.040										12560			125100	125115
130	135	130 _-0.040	135 ^0.040										13060		13080	130100
140	145	140 _-0.040	145 ^0.040										14060		14080	140100
150	155	150 _-0.040	155 _0.040										15060		15080	150100
160	165	160 _-0.040	165 ^0.040										16060		16080	160100	160115
180	185	180 _-0.046	185 ^0.046	2.415	2.465	1.8	0.6								18080	180100
190	195	190 _-0.046	195 ^0.046												19080	190100
200	205	200 _-0.046	205 ^0.046												20080	200100
220	225	220 _-0.046	225 ^0.046										20060		22080	220100
250	255	250 _-0.046	255 ^0.052	2.415	2.465	1.8	0.6								25080	250100
260	265	260 _-0.072	265 ^0.052												26080	260100
280	285	280 _-0.072	285 ^0.052												28080	280100
300	305	300 _-0.072	305 ^0.052
