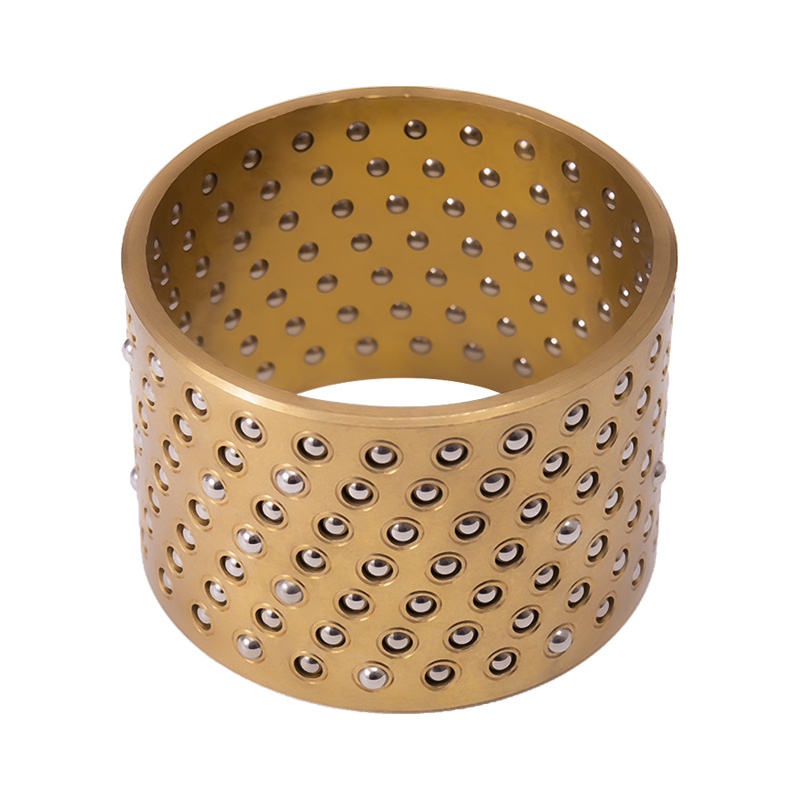

HZ-FZ Ball dux bushing

Product Overview

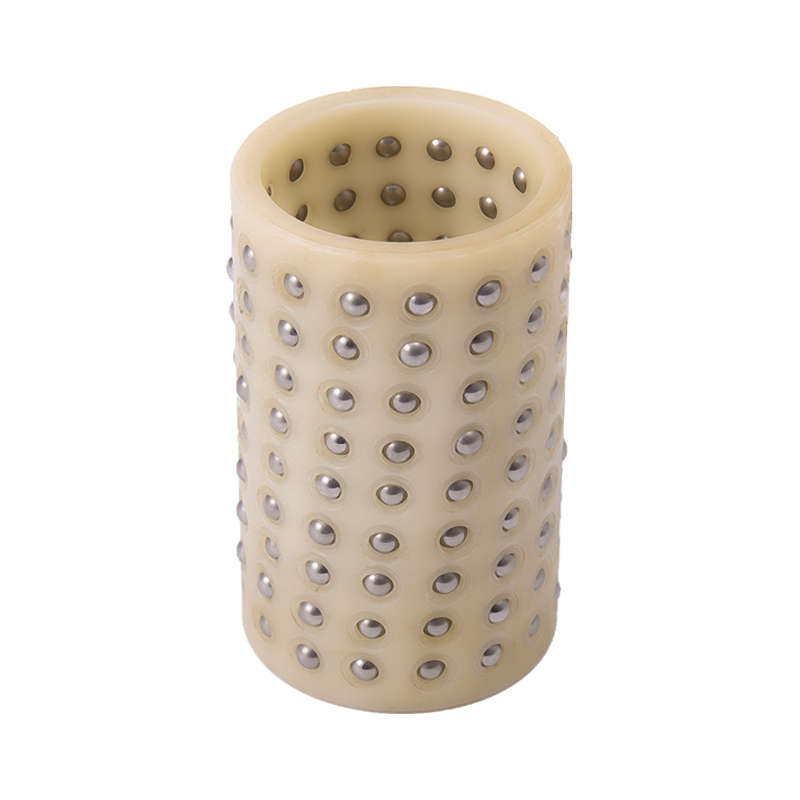

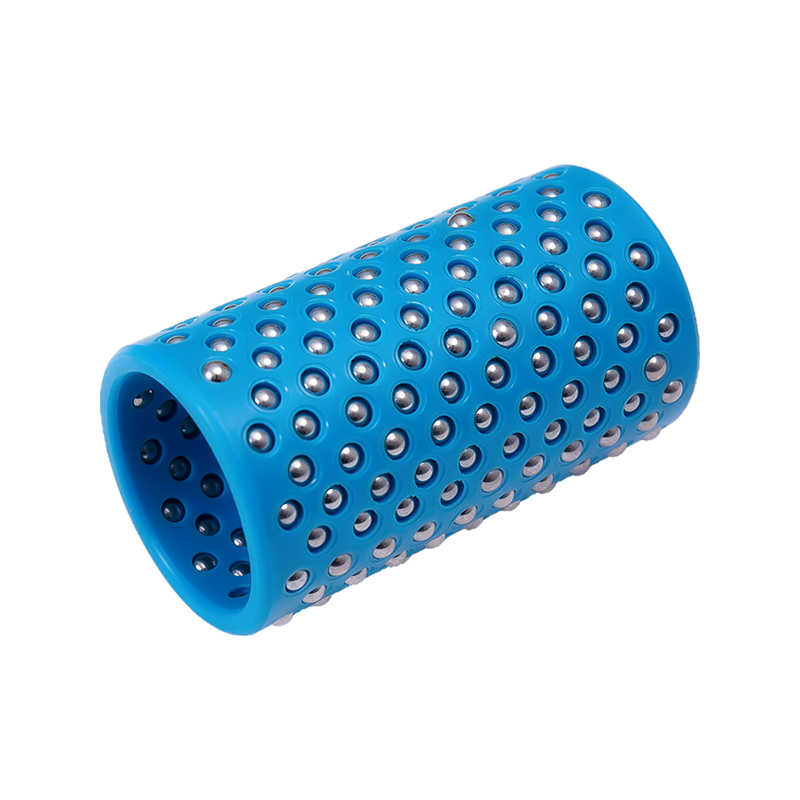

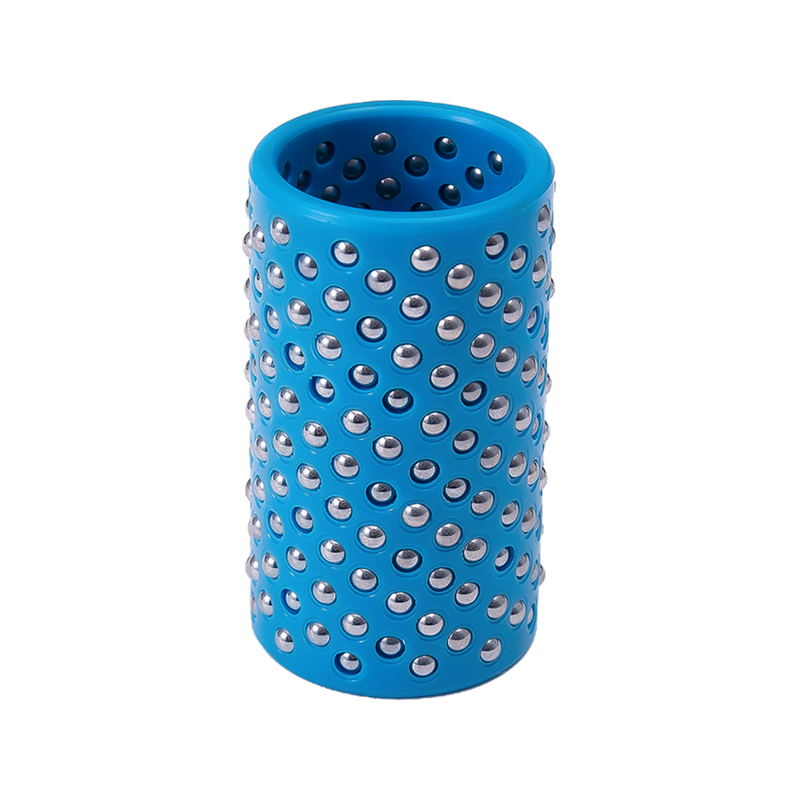

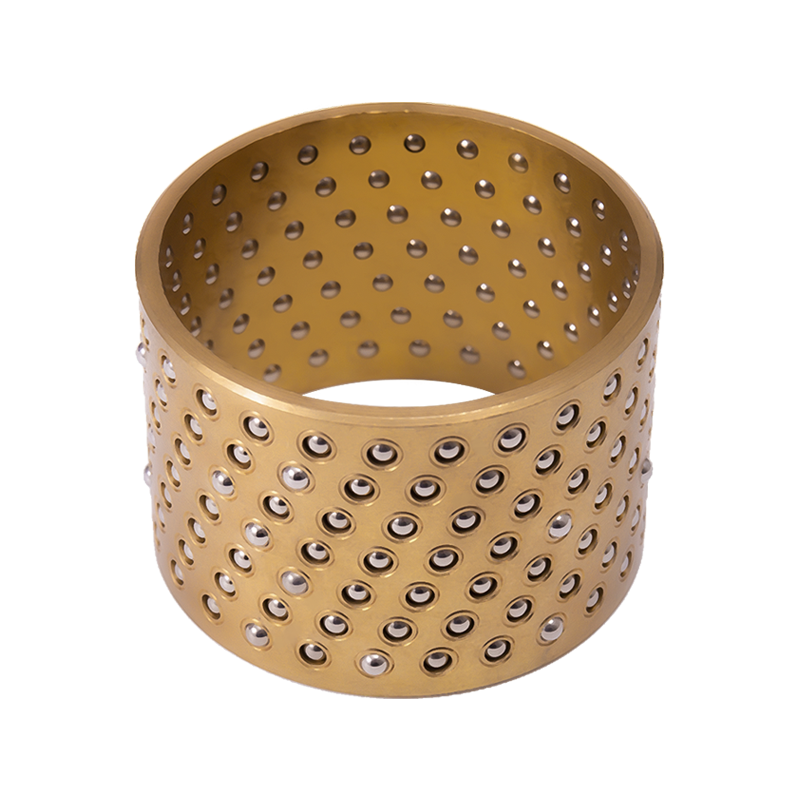

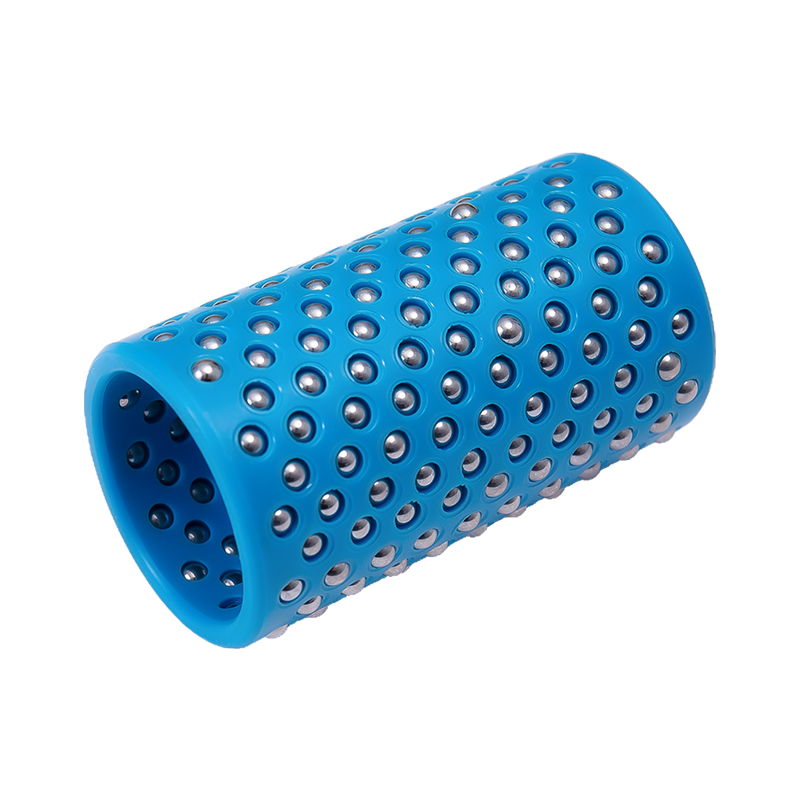

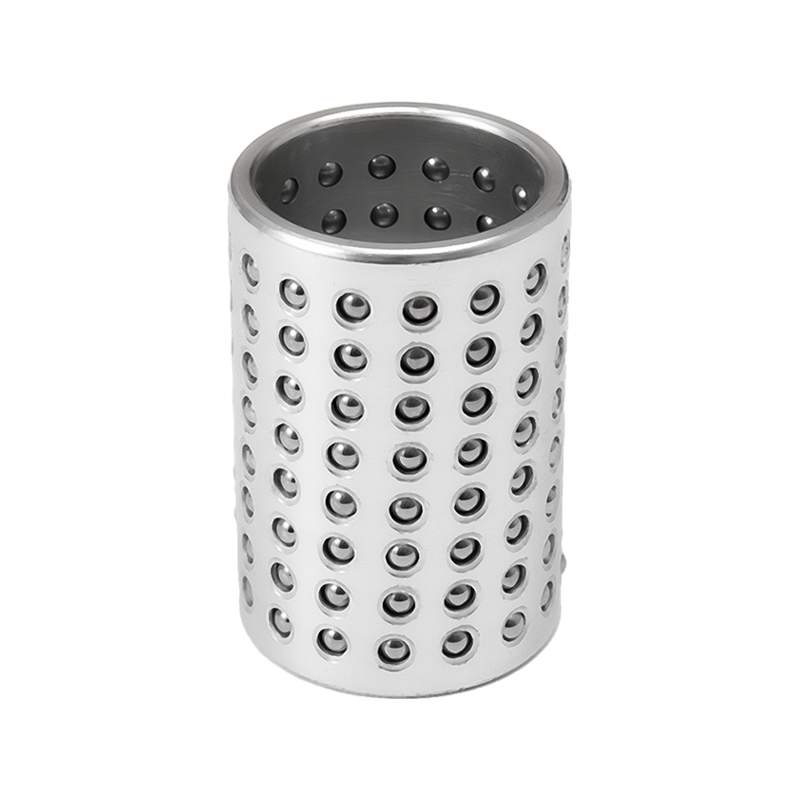

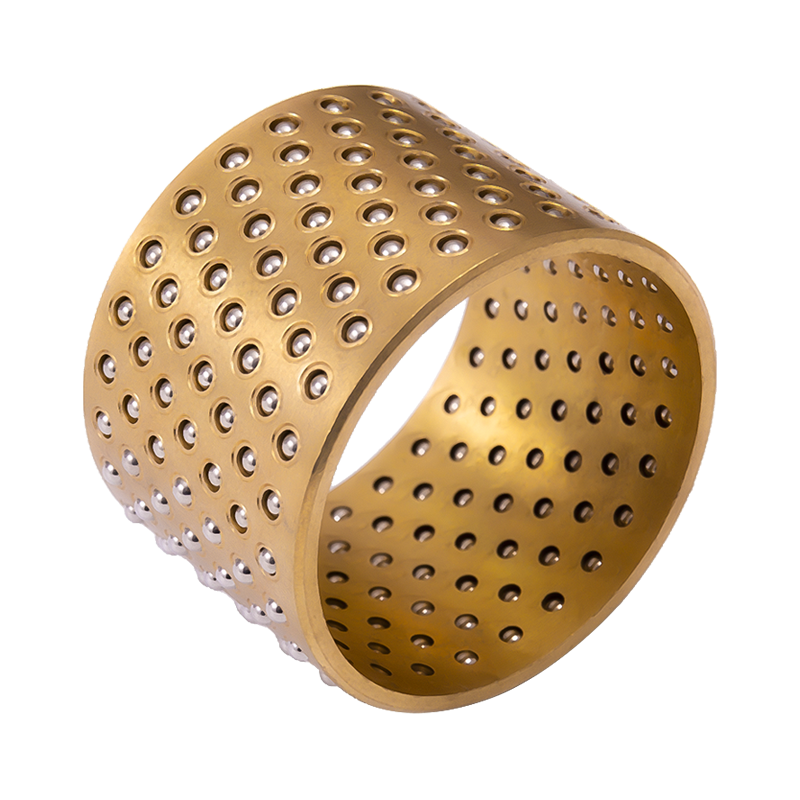

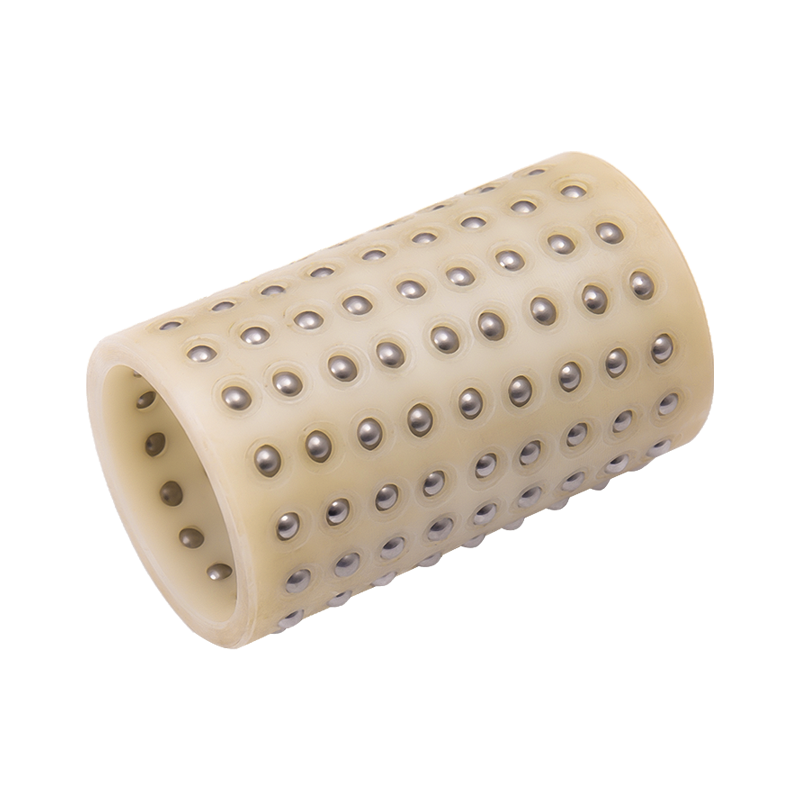

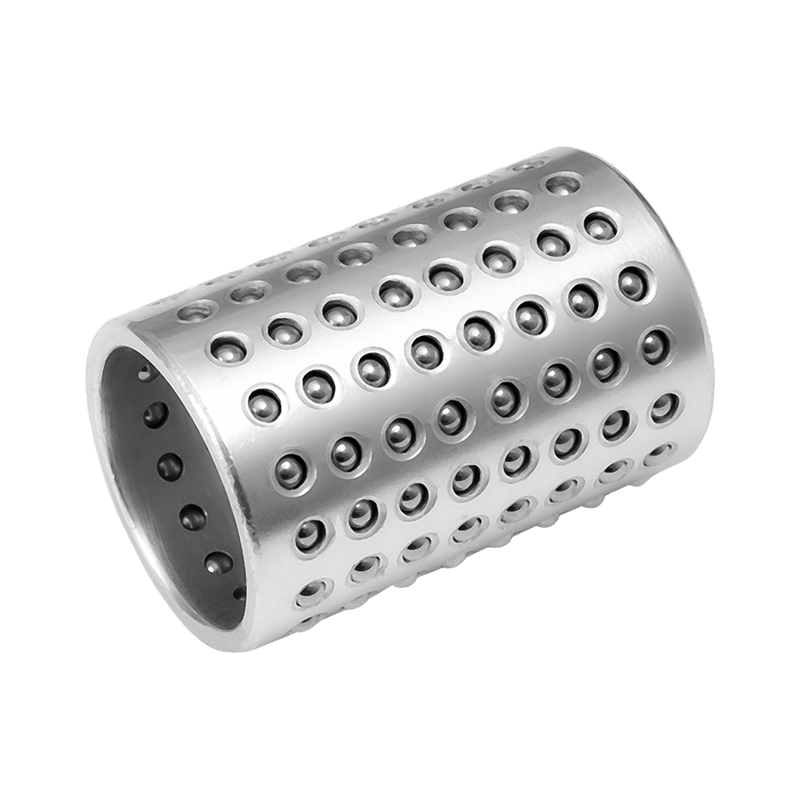

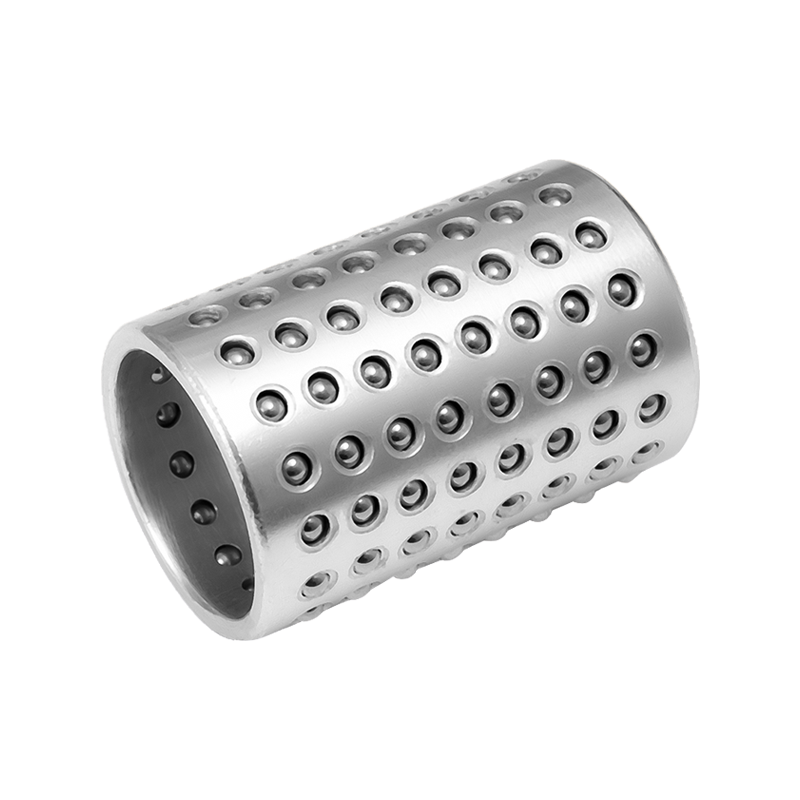

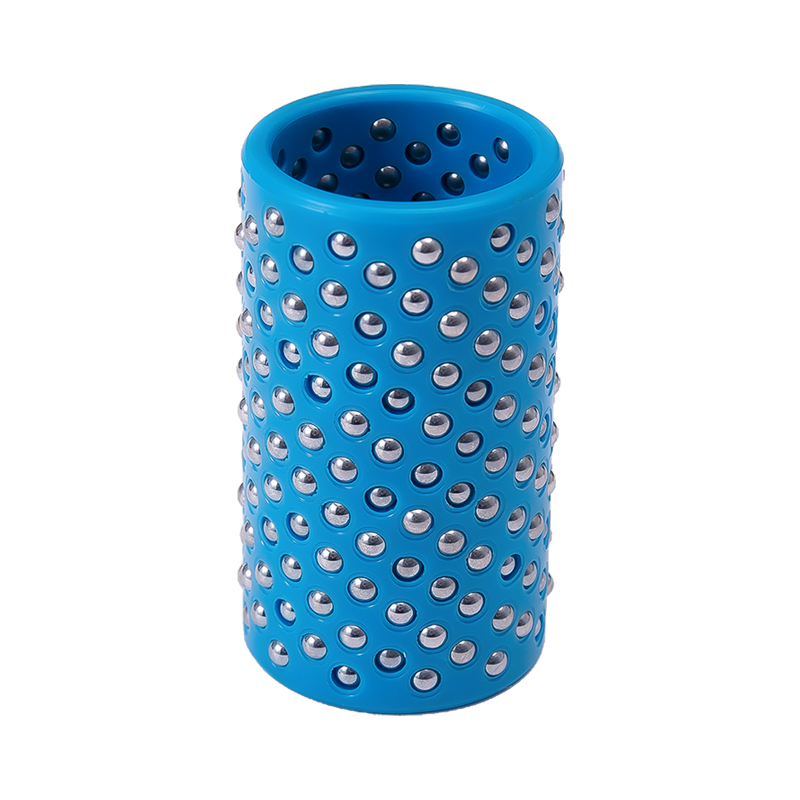

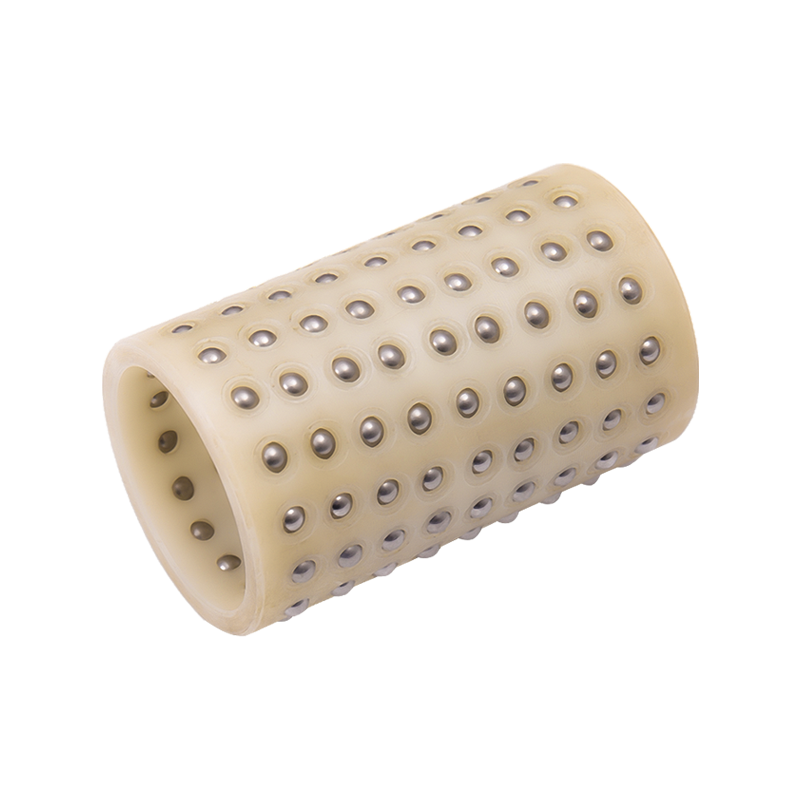

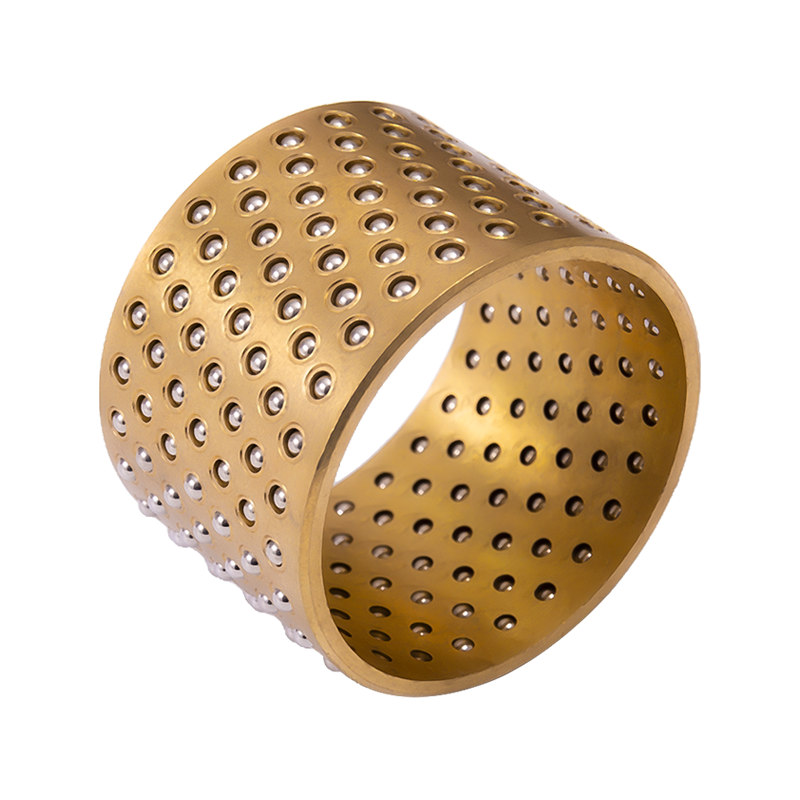

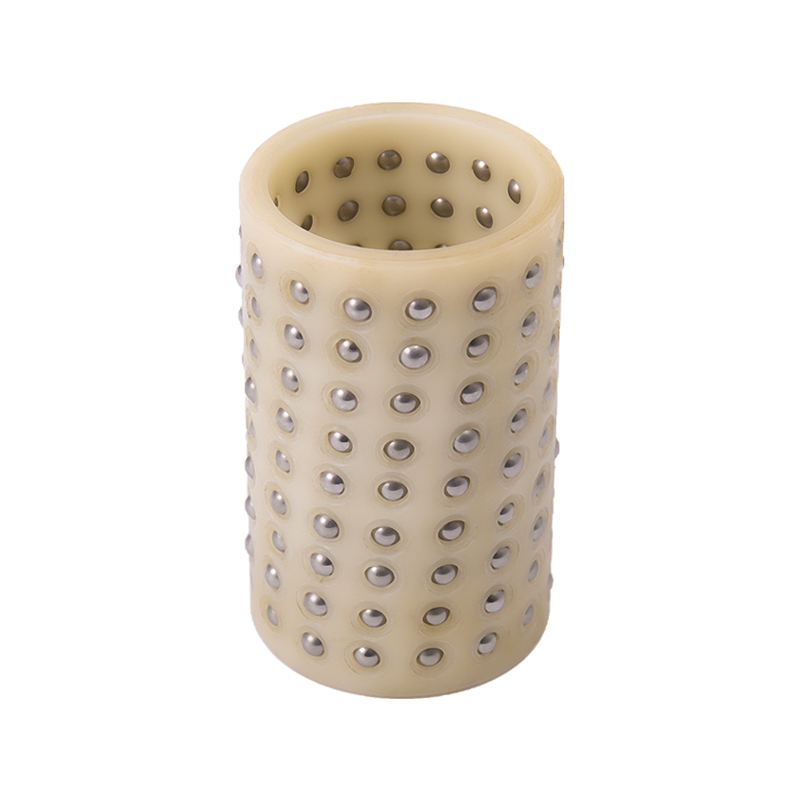

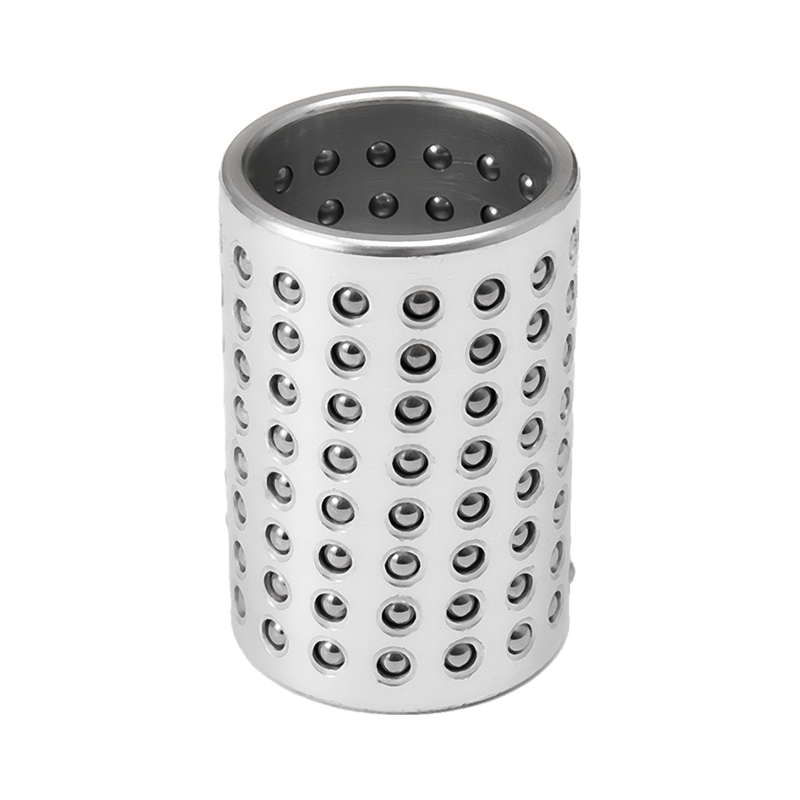

FZH.FZL.FZP.ball clientulus aerarii, aluminii, POM basis. Quaedam foramina regularia machinantur et globum ferreum infodiunt. Nova artificia pila exire vetabunt. sicut globus diameter maior est quam crassitudo retinentis, ita occurret directo cum 90° duce bushing, quod alta praecisione par erit nunc pilae seriei retinentis in postem circumferri, ac motum verticalem conservare. hoc credimus tibi diligentiae augendae beneficium

Utilitas et usus

Sicut trad*itum artificium aliquod invidet inter fruticantem stipes, et coefficiens frictionis maior est. nunc opus-modis ad chalybem pilam directo facie ad faciem duce bushing.ita exactio emendatur. componit ex volumine activo tum coëfficiente inferiori frictioni, nunc late usi sunt in machina pulsandi, machina mori, machina alta praecisione quae rotatione et motu verticali indigent.

Installed parcit rogatum

1. GUIDE BUSHING: MATERIA GCrI5, YB9, CALOR TRACTATIO HRC62-66, ARTIFICIUM CONDITIO SECUNDUM GB/T12446.REQUEST 0.01-0.02mm AEQUOR SAEVITIA EST
2. GUIDIE POSTS: MATRIALGCrI5, YB9, HEA AEQUOR SAEVITIA EST

3. MENSURA TEST: EXTRA MICROMETER & DIAL MODULUS METIOR USUAL.THE Ymax (Ymax 2d' -Dmin) PETO 0.01-0.02mm

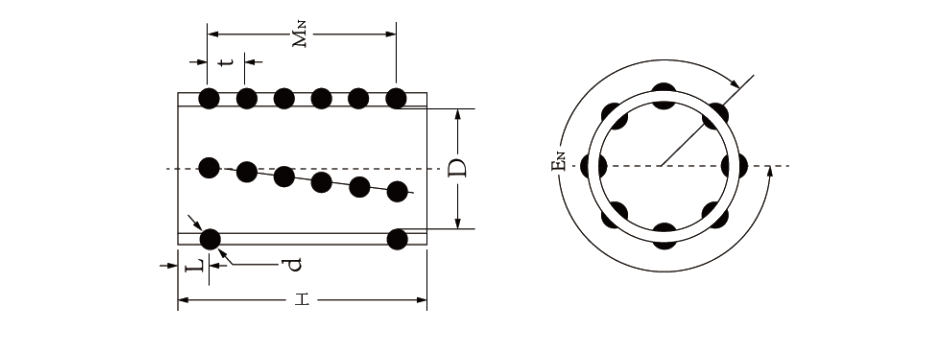

Designatio	D	H	d	EN	MN	BALLS	t	L
FZ(*) 1950	19	50	3	12	8	96	5.5	5.75
FZ(*)1960	19	60			10	120		5.25
FZ(*) 2050	20	50			8	96		5.75
FZ (*) 2060	20	60			10	120		5.25
FZ(*) 2250	22	50		14	8	112		5.75
FZ(*)2260	22	60			10	140		5.25
FZ(*)2360	23	60			10	208		5.25
FZ(*)2475	24	75		16	13	128		4.50
FZ(*) 2550	25	50			8	112		5.75
FZ(*) 2560		60			10	160		5.25
FZ(*)2575		75			13	208		4.50
FZ(*)2775	27	75			13	208		4.50
FZ(*)2860	28	60	4	14	8	112	6.5	7.25
FZ(*)2875	28	75			11	154		5.00
FZ (*) 3060	30	60			8	112		7.25
FZ(*)3075	30	75			11	154		5.00
FZ(*) 3260	32	60		16	8	128		7.25
FZ(*) 3275		75			11	192		5.00
FZ(*) 3390		90			13	208		6.00
FZ(*) 3685	36	85			12	192		6.75
FZ(*)3690	36	90	5		13	208	8.0	6.00
FZ(*)3870	38	70			8	128		7.00
FZ(*)3890	38	90			11	176		5.00
FZ (*) 4090	40	90			11	176		5.00
FZ(*)4590	45	90		18	11	198		5.00
FZ(*)45110	45	110		18	13	234		7.00
FZ(*)5090	50	90		20	11	220		5.00
FZ(*)50110	50	110		20	13	260		7.00
FZ(*) 6090	60	90		22	11	242		5.00
FZ(*) 60110	60	110		22	13	286		7.00
FZ(*) 80130	80	130		28	15	420		9.00
