HZ-LIN Signati ipsum plasticum facientem illapsum movendi Provisores, Societas

HZ-LIN Signati ipsum plasticum facientem illapsum movendi

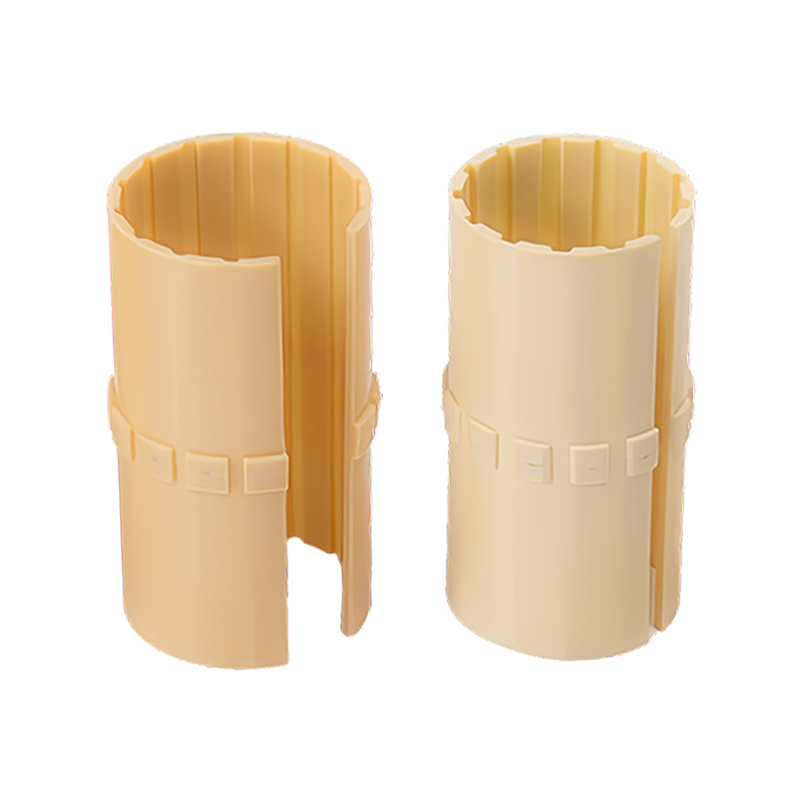

HZ-LIN Engineering Plastic Ferens Pelliculam illapsum ex fibra provecta confirmata polymerorum solidis lubricantibus infixa est, ut eximiam gerunt resistentiam et operationem liberam sustentationem. Eius mixtio optimized resinae basin, fibras roborans, et particulae lubricae parvae encapsulatae, per varias sarcinas et velocitates reductionem constantem efficit friction.

Materia: Summus fortitudo machinalis matricis plasticae (exempli gratia, POM, PA66) solidis lubricantibus immersa (PTFE, graphite).

Design:
Auto-lubricans per emissionem particularum ducatus sub motu sobrie.
Corrosio-repugnans, chemico-iners, et immunis pulveri ingressu.
Leve cum magna vi compressiva (usque ad 120MPa onus static).

Euismod:
Humilis frictio coefficiens (μ=0.05-0.15) trans -40°C ad 120°C.
Praeclara PV valoris (≤1.5 MPa·m/s) pro applicationibus dynamicis.
Contaminantes dura haurit integritas superficiei sine discrimine.
Applicationes: systemata Conveyoris, machinae packaging, cardines agriculturae, et compages gyratoria humili velocitate.

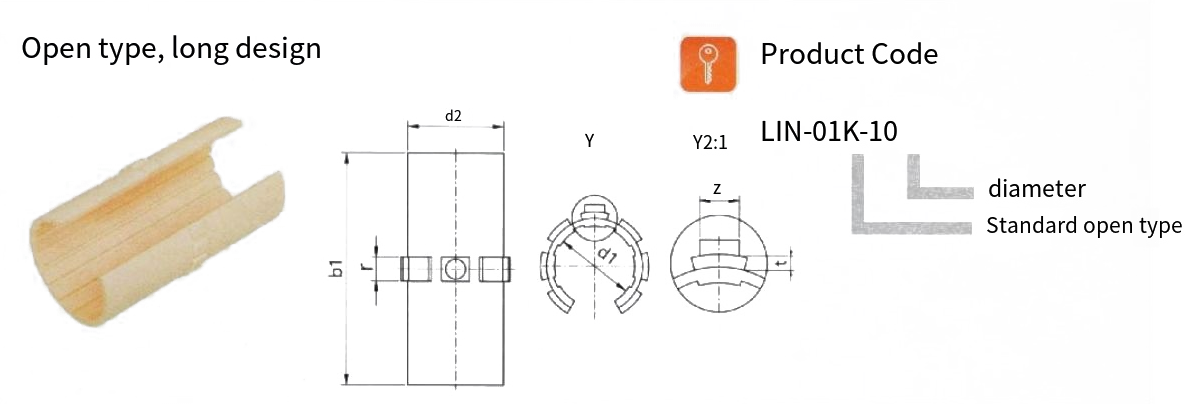

Idoneum ad sustinendum spicula
Mag*nitudo: mm

Pr****oduct Code	d1	tolerantia	D2	b1	r	t	Cum	pondus g *
LIN-01-10	10	0.030 0.070	12	28	3	0.8	2.5	0.9
LIN-01-12	12	0.030 0.070	14	31	3	0.8	3	1.16
LIN-01-16	16	0.030 0.070	18	35	3.5	0.8	3.5	1.70
LIN-01-20	20	0.030 0.070	23	44	5	0.8	3.5	4.16
LIN-01-25	25	0.030 0.070	28	57	5	0.8	A	6.98
LIN-01-30	30	0.040 0.085	34	67	5	0.8	4	12.35
LIN-01-40	40	0.040 0.065	44	79	6	1.3	5	20.18
LIN-01-50	50	0.088 0.100	55	99	7	1.3	6	38.60

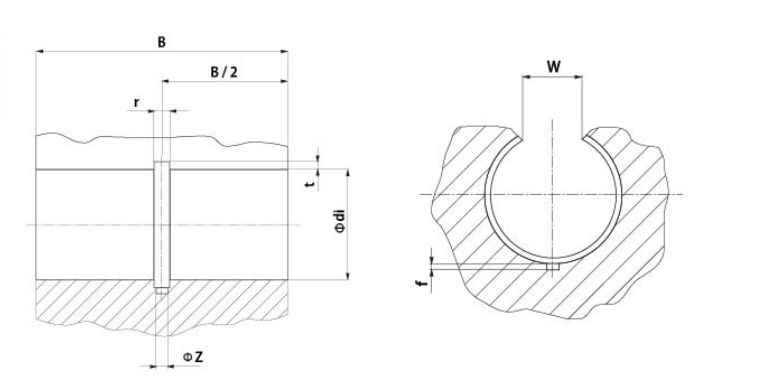

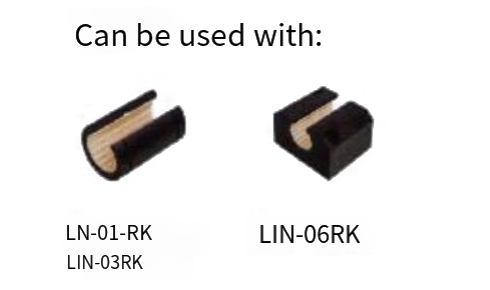

Conventus tium extractionis pro basi cinematographici lapsus cinematographici LN-01
Mag*nitudo: mm

Pr****oduct Code	Axis Φ	of*** H7	B h10	W 0.2	r	t	f	z***
LIN-01-10	10	12	29	7.3	3	1.0	1.0	2.6
LIN-01-12	12	14	32	9	3	1.0	1.5	3.1
LIN-01-16	16	18	36	11.6	3.5	1.0	1.7	3.6
LIN-01-20	20	23	45	12	5	1.0	2.0	3.6
LIN-01-25	25	28	58	14.5	5	1.0	2.0	4.1
LIN-01-30	35	39	70	16.6	5	1.0	2.0	4.1
LIN-01-40	40	44	80	21	6	1.5	2.5	5.1
LIN-01-50	50	55	100	25.5	7	1.5	2.5	6.1

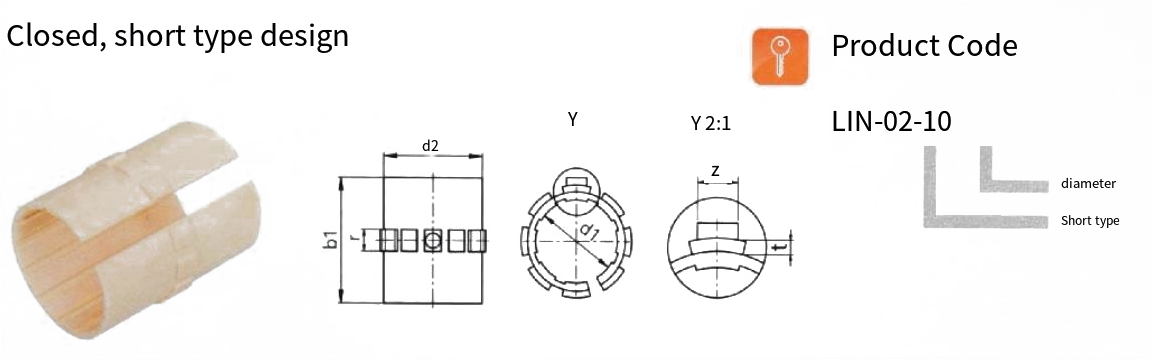

LIN film labens

Mag*nitudo: mm

Product Code	d1	Publicum verbum	D2	b1	r	t	z***	F maximum valorem dynamics P=5MPa[N]	F maximum valorem status stabilis P=35MPa[N]	Pondus g
LIN-02-10	10	0.030 0.070		25		0.8	2.5	650		1.02
LIN-02-12	12	0.030 0.070	14	27	3	0.8	3	840	5880	1.27
LIN-02-16	16	0.030 0.070	18	29	3.5	0.8	3.5	1200	8400	1.82
LIN-02-20	20	0.030 0.070	23	29	5	0.8	3.5	1500	10600	3.27
LIN-02-25	25	0.030 40.070	28	39	5	0.8	4	2500	17500	5.75
LIN-02-30	30	0.040 0.065	34	49	5	0.8	4	3750	26250	11.28
LIN-02-35	35	0.040 0.065	39	59	5	1.3	4	6000	42000	17.94
LIN-02-40	40	0.040 0.089	44	59	6	1.3	6	7200	50400	27.00
LIN-02-50	50	0.088 0.100	56	69	7	1.3	6	8750	61250	32.56

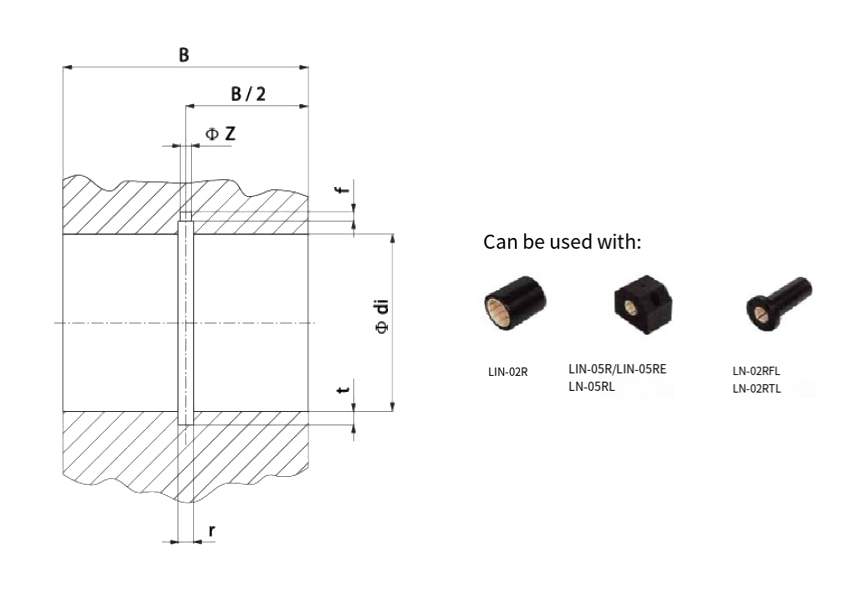

Conventus tium extractionis pro basi cinematographici lapsus cinematographici LN-02
Mag*nitudo: mm

Product Code	Axem Φ	di H7	B h10	r	t	f	z***
LIN-02-10	10	12	26	3	1.0	1.0	2.6
LIN-02-12	12	14	28	3	1.0	1.5	3.1
LIN-02-16	16	18	30	3.5	1.0	1.7	3.6
LN-02-20	20	23	30	5	1.0	2.0	3.6
LIN-02-25	25	28	40	5	1.0	2.0	4.1
LIN-02-30	30	34	50	5	1.0	2.0	4.1
LIN-02-35	35	39	60	6	1.5	2.5	5.1
LIN-02-40	40	44	60	7	1.5	2.5	6.1
LIN-02-50	50	55	70	7	1.5	2.5	6.1
