HZ-JDB Repugnans graphite aeris bushing Provisores, Societas

Principalis Ind***ex Technical / gere, euismod

Main Technical Index

Model	(Unit)	IOB-1	Iob-2	Job-3	Iob-4	IOB-5
Materia		CuZn25AI6Fe3Mn4	CuSn6Zn6Pb3	SteeI CuSn6Zn6Pb3	HT250	GCR15
Friction coef	M	<0.16	<0.15	<0.14	<0.18	<0.17
Temp, Max.	•C	300	350	300	400	350
Lond Max	N/mm2	100	60	70	60	250
Velocitas Max. (sicca)	m/s**	0.4	2	2	0.5	0.1
Velocitas Max. (oleum)	m/s**	5	10	10	5	3
PV Max.	N/mm2.m/s	1.8	0.5	0.6	0.8	2.5
PV Max.	N/mm2.m/s	3.8	3.8	3.8	3.8	3.8
Dilatabilitas	X10-6/C	16 20	16 18	16 20	8〜12	8〜12
Materia Hardness	HB/HRC	210〜250HB	80〜120HB	60〜90HB	180〜230HB	HRC55 60

JDB gere, euismod (Compositae cum CuSn6Zn6Pb3-compositis bushing)

Onus Acta		62N/mm²		24.5N/mm²		14.7N/mm²
Item		profundum gerunt	Tempus	profundum gerunt	Tempus	profundum gerunt	Tempus
Type	Lubricatio	(mm)	(min)	(mm)	(min)	(mm)	(min)
CuSn6Zn6SPb3	oleum	0.098	10	0.0125	100	0.10	100
JDB-1	sicco	0.075	100	0.015	100	0.012	100
JDB-2	sicco	0.025	30	0.065	100	0.025	100
JDB-3	sicco	0.03	30	0.12	100	0.015	100
JDB-4	sicco	0.03	10	0.25	20	0.011	100
JDB-5	sicco	0.022	100	0.013	100	0.01	100

Applicationem

EXEMPLUM	USUS Features
JDB-1	basically genera-products. aptum variis circumstantiis calidis vel frigidis, oleo vel oleo aut oleo lubrico. vel etiam in aqua. Matricas habet magnas cum viribus aes. Duritia eius duplicat quod normales aenei frutices et indumentorum effectus in magna ex parte meliores sunt, itaque ad conticastram, machinam positis applicata est. converororum metallicae industriae. Etiam in machinis plasticis iniectio adhiberi potest, in automatis cursualis altae contentionis electricitatis, in luffing et machinis constructionis partium sustinentibus. Porttitor consectetuer porta auctor. Pilley, rotae aquae depellere imperium project, et cuniculum chartarum machinarum siccare. auto- die par- ticulae navium inunationes etc.
JDB-2	Proventus seriei JDB-2 sunt maxime pro circumstantiis cum onere gravi et caliditate, verbi causa: gemelus portae focalis, machinarum machinarum racemabilis pistorum levis industriae. machina instrumenta industriae et cetera.
JDB-3	Materia lateris interioris productorum seriei JDB-3 sana est sicut series seriei JDB-2. ita munus ac series JDB-2 possent. addito. Aliae commoda habent ut sumptus materiales salvificos, vires compressivae meliores, et quod congregari possint per conglutinationem superficiei bushing cum aliis matricis. Sunt aptae ad partes quae oleum lubricationis machinarum constructionum, machinis metallicis et machinis importandis non indigent.
JDB-4	Producta JDB-4 sunt typica quaedam materiae salutaris. JDB-2 products substitui potuerunt ubi mechanica requiementes altae non sunt. Sumptus latius minuere poterant. ac postulationibus adhiberetur. Ut: fingunt dux bushing, mori tabellarius machinarum plasticarum et cetera.
JDB-5	Producta JDB-5 seriei quaedam producta munita sunt. Ob eam capacitatem optimam comprehensivam. Maxime apta est in partibus machinarum levandorum sustinendis. hoc modo: fulcimentum rooter. support of Levabit engine. auxilium gruis et cetera. Matricas vero cum chalybeas esse, non sunt aptae circum- stantiae cum aqua. Acidum et alcali

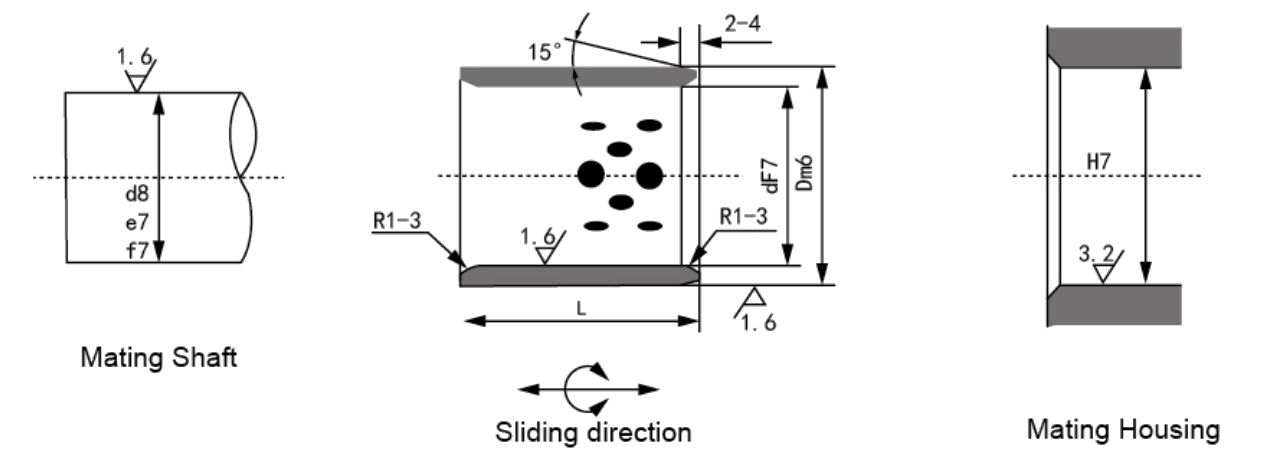

Recta Sleeve Bearings Standard Metric Size

d	D	I.D. F7		O.D. m6		L -0.30-0.10
d	D	I.D. F7		O.D. m6		8	10	12	15	16	20	25	30	35	40	50	60	70	80
8	12	8	0.028 0.013	12	0.018 0.007	081208	081210	081212	081215
10	14	10	0.028 0.013	14		101408	101410	101412	101415		101420
12	18	12	0.034 0.016	18			121810	121812	121815	121816	121820	121825	121830
13	19	13		19	0.021 0.008		131910		131915	131916
14	20	14		20			142010	142012	142015		142020	142025	142030
15	21	15		21			152110	152112	152115	152116	152120	152125	152130
16	22	16		22			162210	162212	162212	162216	162220	162225	162230	162235	162240
18	24	18		24				182412	182415	182416	182420	182425	182430	182435	182440
20	28	20	0.041 0.020	28			202810	202812	202815	202816				202835	202840	202850
22	32	22		32	0.025 0.009			223212	223215		223220	223225
25	33	25		33				253312	253315	253316				253335	253340
30	38	30		38				303812	303815		303820	303825	303830	303835	303840	303850	303860
35	45	35		45										354535	354540
40	50	40		50							405020	405025	405030	405035	405040	405050	405060	405070	405080
45	55	45		55									455530	455535	455540
50	60	50		60									506030	506035	506040	506050	506060	506070	506080

Recta Sleeve Bearings Standard Metric Size

d	D	I.D.		O.D.		L-0.30-0.10
d	D	I.D.		O.D.		30	35	40	50	60	70	80	100	120	130	140	150
50	62	50	0.050 0.025	62	0.030 0.011	506230	506235	506240	506250	506260	506270
50	65	50	0.050 0.025	65		506530		506540	506550	506560	506570	506580	5065100
55	70	55	0.060 0.030	70				557040	557050	557060	557070
60	75	60		75		607430	607435	607440	607540	607460	607470	607480
60	75	60		75		607530	607535	607540	607550	607560	607570	607580	6075100
63	75	63		75						637560	637570	637580
65	80	65		80					658050	658060	658070	658080
70	85	70		85	0.035 0.013		708535	708540	708550	708560	708570	708580	7085100
70	90	70		90					709050	709060	709070	709080
75	90	75		90						759060	759070	759080	7590100
75	95	75		95						809660	809670	759580	7595100
80	96	80		96				809640	809560	8010060	8010070	809680	8096100	8096120
80	100	80		100				8010040	8010050	9011060	9011070	8010080	80100100	80100120		80100140
90	110	90	0.071 0.036	110		9011030			9011050	10012060	10012070	9011080	90110100	90110120
100	120	100		120								10012080	100120100	100120120		100120140
110	130	110		130	0.040 0.015							11013080	110130100	110130120
120	140	120		140								12014080	120140100	120140120		120140140
125	145	125	0.083 0.043	145									125145100	125145120
130	150	130		150									130150100		130150130
140	160	140		160									140160100			140160140
150	170	150		170									150170100				150170150
160	180	160		180									160180100				160180150

Flange Bearings Standard Metric Size

d	D	I.D.		O.D.		F	L ₁
d	D	I.D.		O.D.		F	L ₁	15	20	25	30	35	40	50	60	80	100
D		10	0.040 0025	14	0.003 0.023	22	2	1015	1020
12	18	12	0.050 0.032	18	0.003 0.023	25	3	1215	1220
13	19	13		19	0.041 0.028	26		1315	1320
14	20	14		20		27		1415	1420
15	21	15		21		28		1515	1520	1525	1530
16	22	16		22		29		1615	1620	1625	1630
20	30	20	0.061 0.040	30		40	5		2020	2025	2030	2035
25	35	25		35	0.050 0.034	45			2520	2525	2530	2535
30	40	30		40		50			3020	3025	3030	3035	3040	3050
35	45	35	0.075 0.050	45		60				3525	3530	3535	3540	3550
40	50	40		50		65					4030	4035	4040	4050
45	55	45		55	0.002 0.041	70					4530	4535	4540	4550	4560
50	60	50		60		75							5050	5050	5060
55	65	55	0.093 0.093	65		80							5540	5550	5560
60	75	60		75	0.002 0.041	90	7.5						6040	6050	6060	6080
70	85	70		85	0.073 0.051	105								7050	7060	7080
75	90	75		90		110								7550	7560
80	100	80		100		120	10								8060	8080	80100
100	120	100	0.107 0.072	120	0.006 0.041	150									10060	10080	100100
120	140	120	0.107 0.072	140	0.088 0.063	170									12060	12080	120100
