Typical applications
01 / hydrau cylindricum duce anulum, anulum sustinendum
02 / machinae hydraulicae, instrumentum machinae instrumentum columnae manica fabricans
03 / machinae constructiones, vehiculum adductius axem bracket bushing
Technical parametri
| Exemplar | color | Densitas (8/cmP) |
Prolongatio Fortitudo
(MPa) | compressive viribus | duritia | coefficiens friction | Operating Temperature
(°C) |
| Superficies plana super laminated | Perpendicularis ad superficiem laminate | sicco | Oleum lubricationis |
| PFC-1 | pallide brunnea | 1.2-1.4 | ≥45 | ≥168 | ≥256 | 92 | 0.23-0.46 | 0.12-0.14 | -40~ 130 |

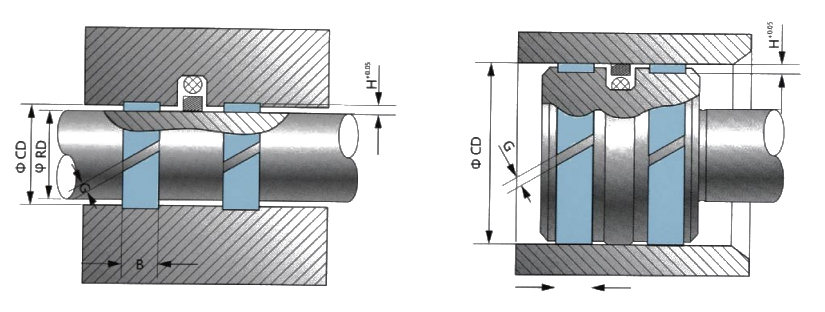

Cylindrus cylindricus anconicus et anconicus annuli fulcimen referunt ad specificationem
Dimensiones: mm
| Materia | Diameter exterior tolerantia CD | Interior diametri tolerantia d | Murus crassitudo tolerantiae H | Latitudo tolerantia B * | Incisio OD CD | G* incisio | tolerances incisio |
PFC series
Princeps vi vestimento duce annulos | ±0.1 | ±0.1 | 0 | 0 | ≤100 | 2 | ±1 |
| <100~≤200 | 3 | ±1 |
| -0.04 | -0.30 |
| <200 | 4 | ±1 |
Materia Introductio
Materia PFC-2 est summa vis materiae compositae a thermosting in quadam temperatura et pressione utens resinam phenolicam solubilem in qua graphite uniformiter dispergitur et GENERALIS fibra fabricae bombacio. Magnam vim mechanicam habet, attritionem optimam et effectus gerunt, temperamentum bonum resistit, et validis vibrationibus, ictum onera sustinere, ac lenia onera gyrationis sub condicionibus semi-staticis sustinere. Potest operari in statu humili olei vel olei liberae et ad machinationem machinarum aptam, vectura machinalis fabrefacta pontis subsidia bushings, cudorum prelo columnae lecti duces, gestus sphaericis, etc.
Technical parametri
| Exemplar | Color | Density
(g/m.) | distrahentes Fortitudo
(MPa) | Compressive vires | duritia | Coefficiens friction | Operating Temperature (°C) |
| Ad superficiem laminated parallel | ad perpendiculum laminae superficiei | Siccum | Oleum lubricationis |
| PFC-2 | nigrum | 1.2-1.4 | ≥40 | ≥160 | ≥220 | 90-100 | 0.15-0.30 | 0.10-0.12 | -40~ 130 |
Typical applications
01/Ball valvae, hastile manica papilio valvae
02/Plastic Machinery Green Column Guide Sleeve
03/Hydraulic Machinery Shaft Sleeve
04/machina hydraulica, machinae columnae manica fabricator
05/Constructione machinarum, vehiculum adductius pontis bracket oblinit
VI/Spherici gestus et marinos portantes materiae ad machinationem marinam apparatum
Materia Introductio
Materia haec ex fibris syntheticis componitur, polyester resina roboratur, et Micro pulveres auto-lubricans. Habet humilem friction coefficientem, altam proprietates mechanicas, et resistentiam chemicam corrosionis
Habet bonam et infimam effusio aquam.
Technical parametri
| Exemplar | Color |
Density
(g/m) | Compressive fortitudo
(MPa) | Friction System (Arida Friction) | operating temperatus |
| Minimum temperatus | Minimum temperatus |
| PFC-20 | Viridis vel albis | 1.2-1.4 | 330 | 0.13(usum GB/T3960) | 120 | -40 |
Typical applications
01/Diens anulum
02/ Partes, scapus manicarum et conchas ferens
03/Shipbuilding and Marine Components
IV/Construction Machinery Partes
05/Hydraulica genera- tium potentiae
